Fabro KNX
KNX touch panel for operating the building technology and for displaying values, data and alarm events
Product details
Description

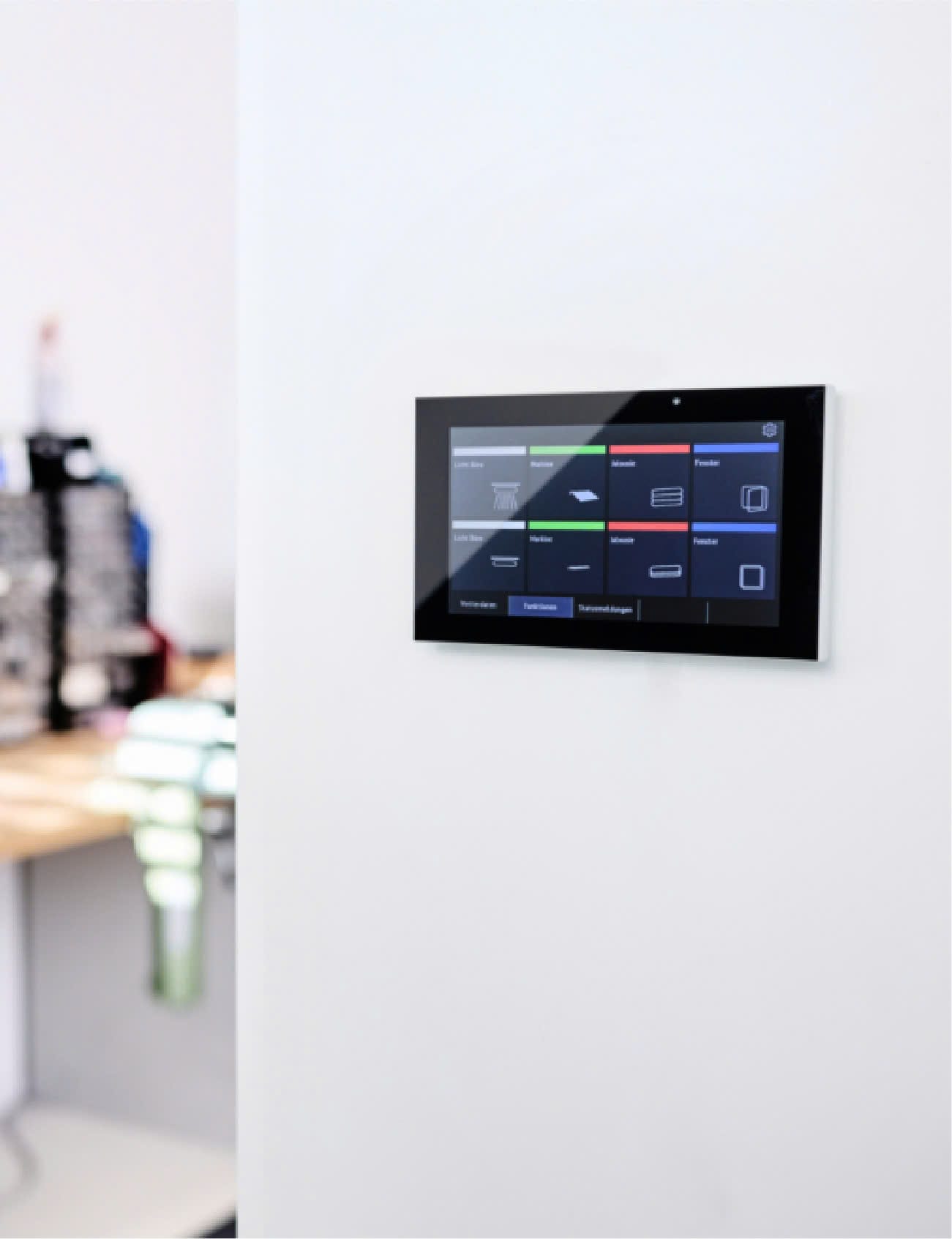

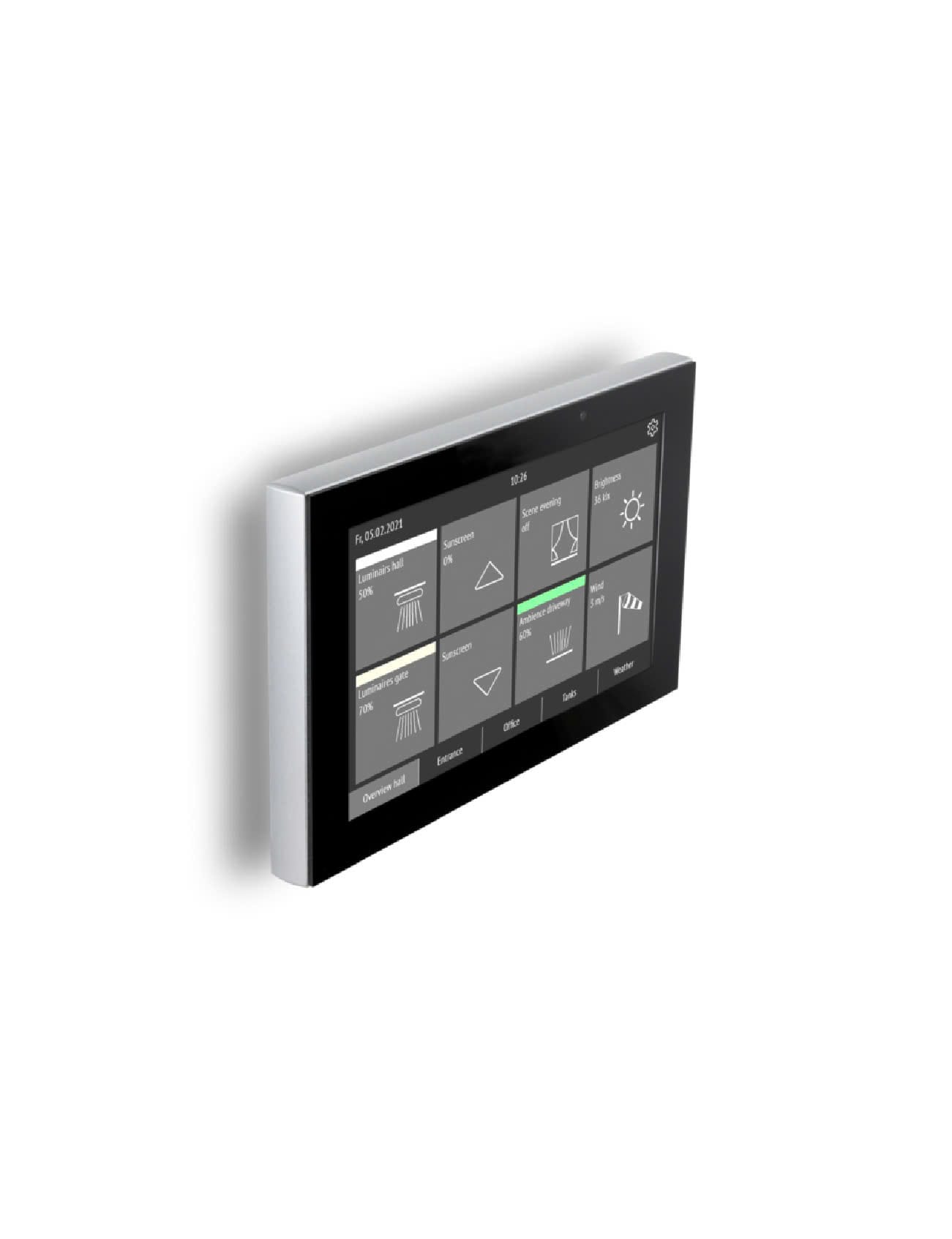

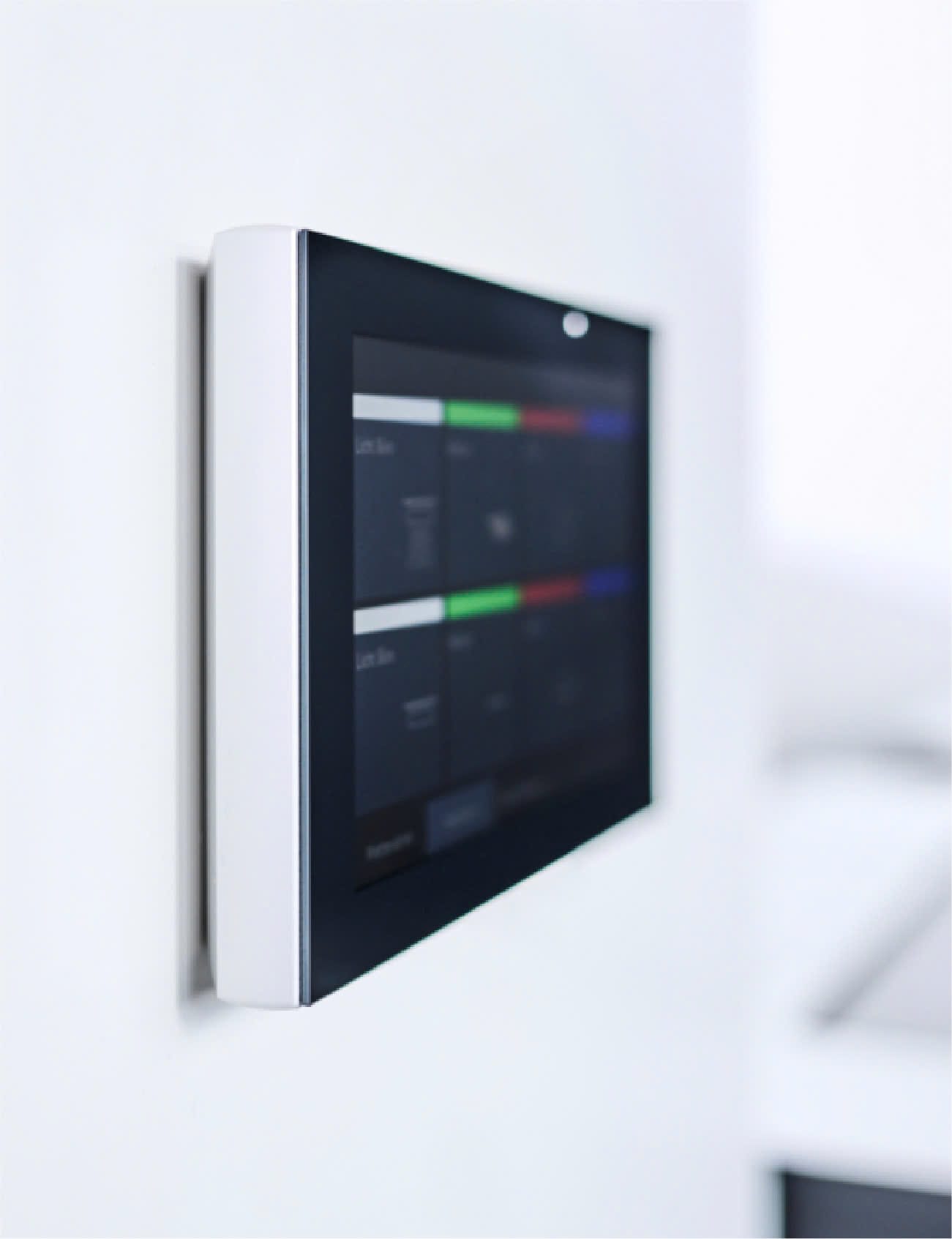

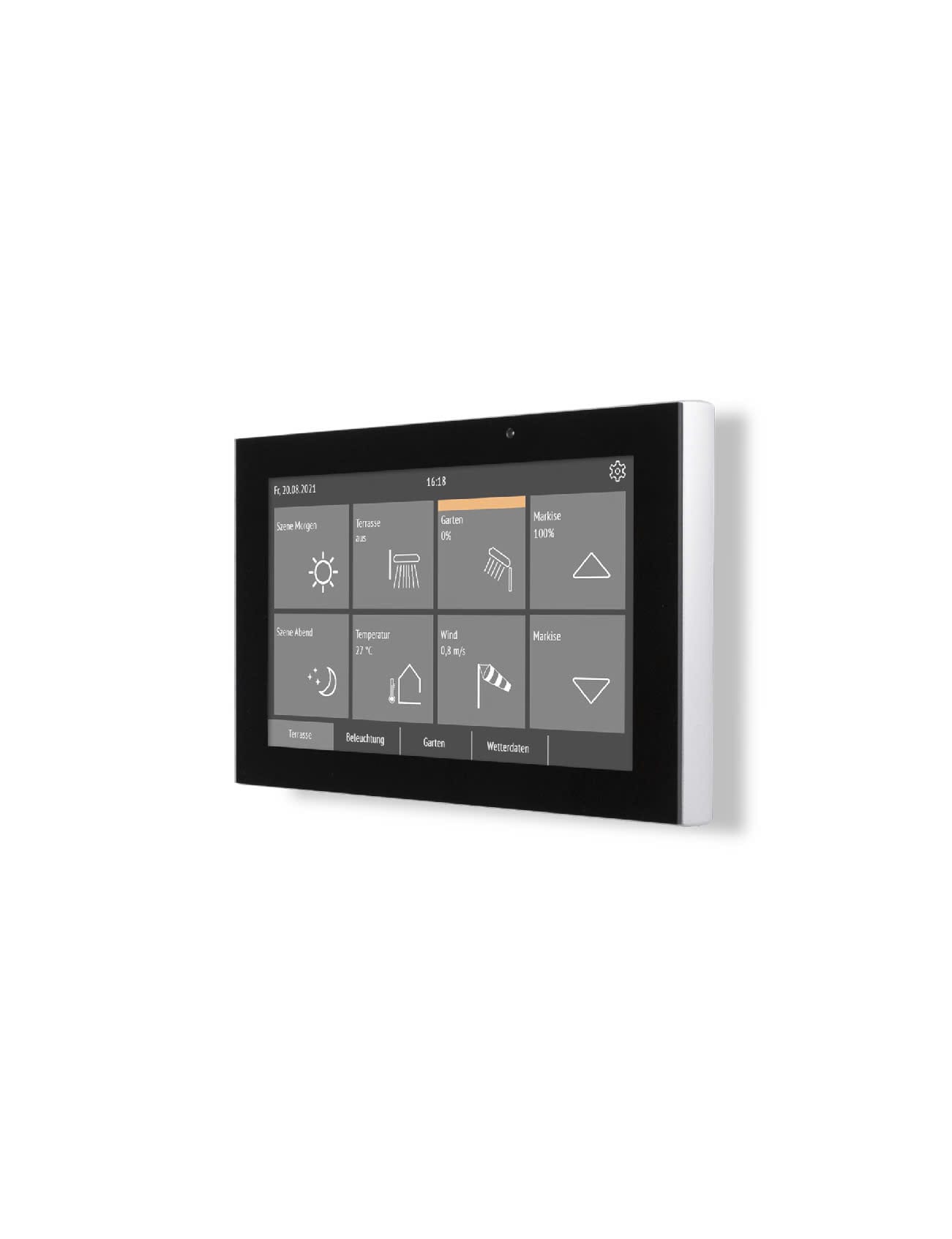

The Fabro KNX Touch Panel is an operating and display panel with IP 66 protection for the KNX building bus system. A robust aluminium housing protects the 7-inch screen with real glass touch surface. 8 areas can be displayed on each of 5 display pages. Texts, values, a symbol and a colour field are displayed in each area. Functions with objects from 1 bit (switching) to 14 bytes (text) are assigned to the areas.
In the application, 8 AND and 8 OR logic links as well as 8 multifunction modules for calculation, conditions and data conversion are available. 8 alarm input objects can trigger text displays or beeps on the Fabro KNX.
