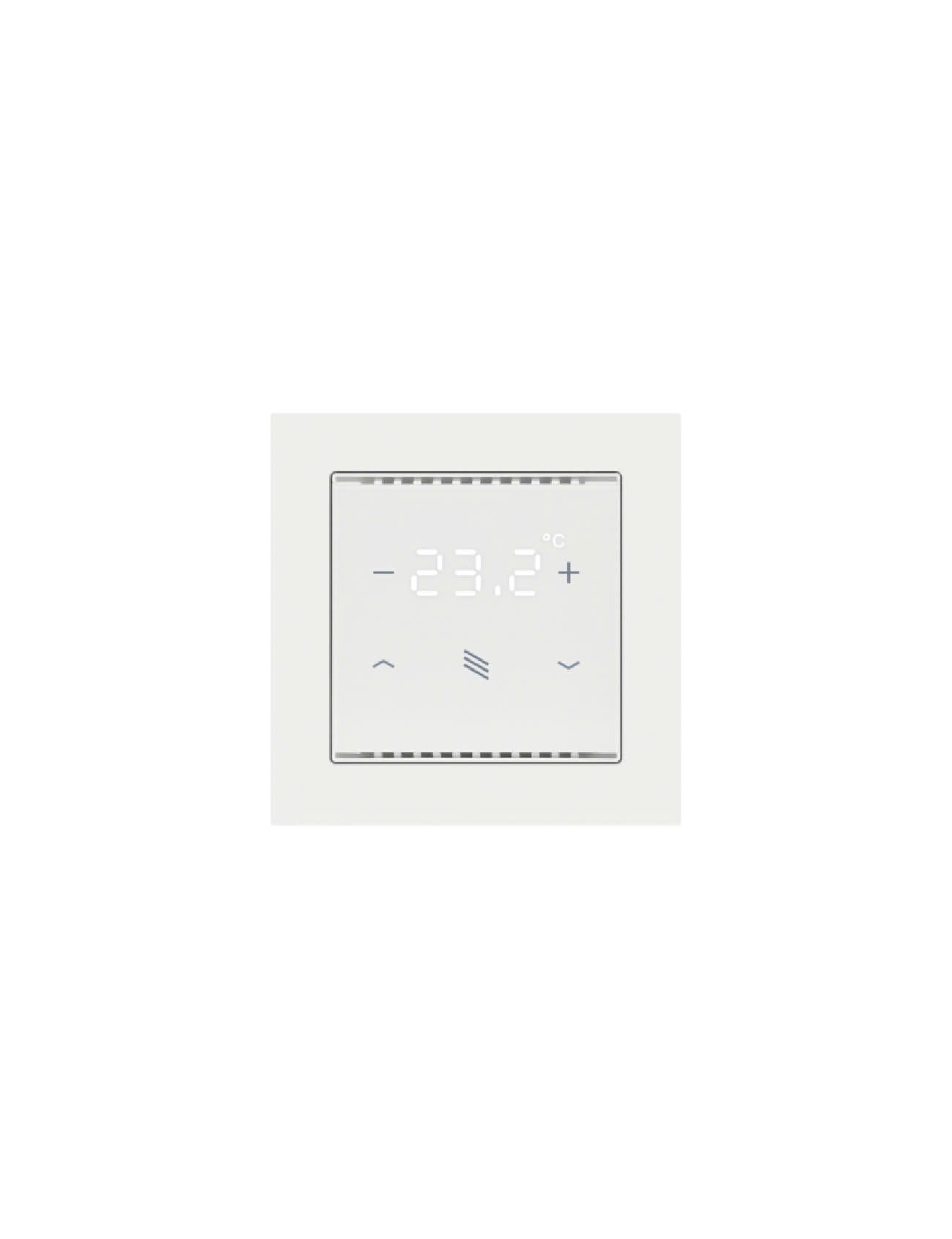

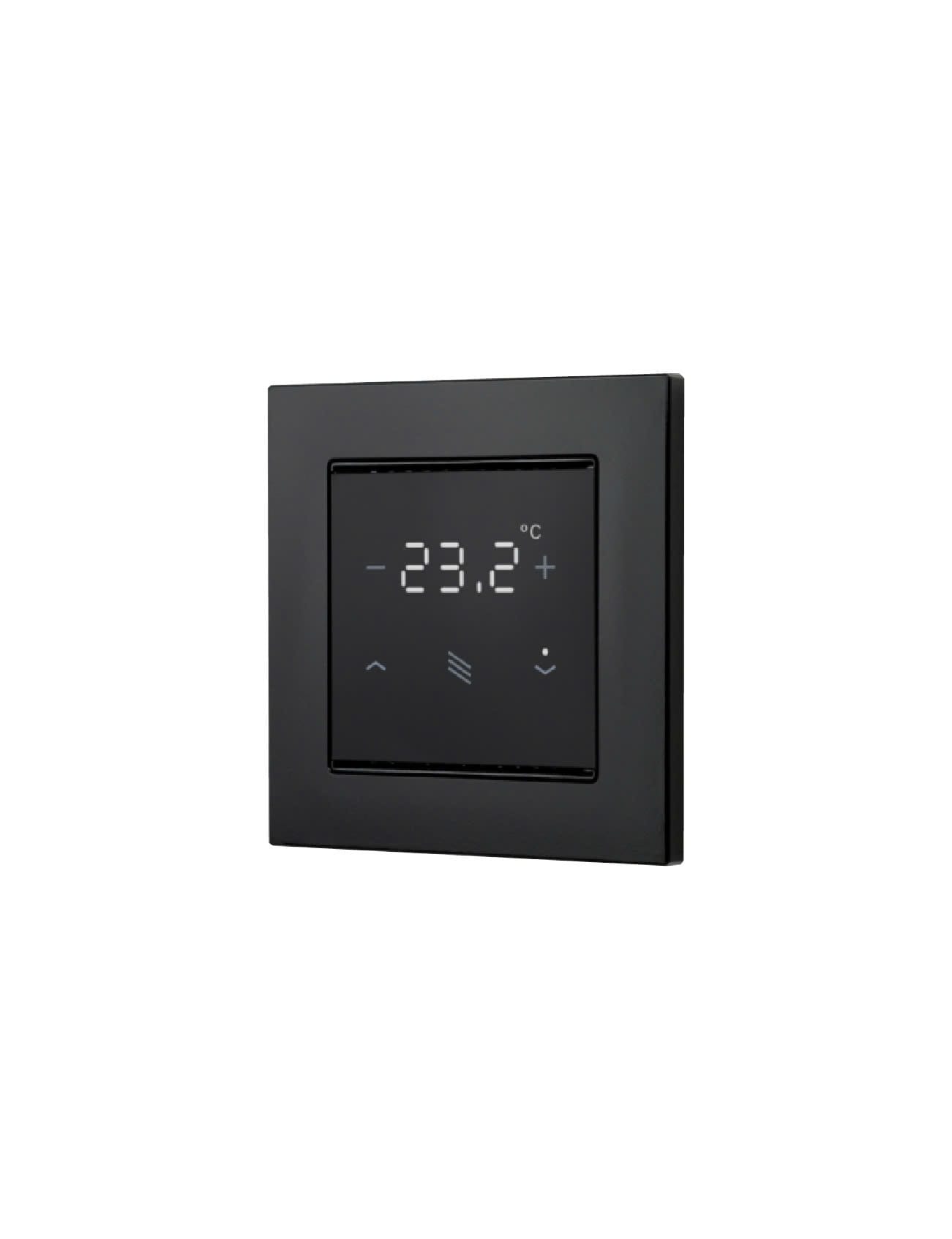

Cala KNX T 201/202 Sunblind
Temperature Controller, Button for Shading
KNX heating controller with temperature sensor, blind operation/sun protection operation
Product details
Description
- Heating controller/thermostat
- Glass surface with temperature display and +/- touch keys
- Pushbutton for sun protection (e.g. blind, roller shutter, awning
The Cala KNX T 201/202 Sunblind push button has touch-sensitive buttons with which functions can be called up in the KNX building bus system. The glass surface is printed with areas for setting the temperature and solar protection. White LEDs are integrated in these areas and their behaviour can be adjusted.
A temperature sensor is integrated into Cala KNX T 201/202 Sunblind. An external temperature reading can be received via the bus and processed with its own data to create a total temperature (mixed value).
The Cala KNX T 201/202 Sunblind has a PI controller for heating and cooling. The setpoint temperature can be changed using the “+” and “-” touch buttons.
Communication objects can be linked via AND and OR logic gates.
The device is supplemented with a frame of the switch series used in the building, and thus fits seamlessly into the interior fittings.
Models:
N° 70990 Cala KNX T 201 Sunblind, white
N° 70992 Cala KNX T 201 Sunblind, black
N° 71050 Cala KNX T 202 Sunblind, white
N° 71052 Cala KNX T 202 Sunblind, black
Delivery without frame
